Spring Boot 学习笔记(三) 整合 MyBatis + Druid

Spring Boot 学习笔记(三) 整合 MyBatis + Druid


0. 环境说明

  • MyBatis Generator 1.3.6
  • MySQL 5.7.17
  • 驱动:mysql-connector-java-5.1.2.jar

1. MyBatis Generator

MyBatis Generator是一款在使用mybatis框架时,自动生成model,dao和mapper的工具,很大程度上减少了业务开发人员的手动编码时间。

我们将使用这个工具自动化的构建 MVC 框架中 M 层所需要的东西。

2. 创建本地数据库

在本地的数据库中创建一张表

# 创建数据库
CREATE DATABASE LEARNING CHARACTER SET utf8;

USE LEARNING;

# 创建表结构
CREATE TABLE ACCOUNT_INFO(
    ACCOUNT_ID INTEGER PRIMARY KEY AUTO_INCREMENT,
    NAME VARCHAR(50),
    PWD VARCHAR(50),
    BALANCE INTEGER
);

# 插入一条数据
INSERT INTO ACCOUNT_INFO VALUES(NULL,'root','root',100);

3. 使用MyBatis Generator

下载地址:

如果你是Windows用户,下载mysql-connector的时候可以选择 Platform Independent 版本

将下载好的MySQL驱动jar包放到generator的lib目录下,

确保mybatis-generator-core-1.3.6.jarmysql-connector-java-5.1.2.jar在同一个目录下。

准备一个 configuration.xml 的配置文件,内容如下:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
     <!-- 配置驱动jar包路径.用了相对路径 -->
    <classPathEntry location="mysql-connector-java-5.1.2.jar" />

    <context id="DB2Tables" targetRuntime="MyBatis3">
        <!-- 为了防止生成的代码中有很多注释,比较难看,加入下面的配置控制 -->
        <commentGenerator>
            <property name="suppressDate" value="true" />
            <property name="suppressAllComments" value="true" />
        </commentGenerator>
         <!-- 数据库连接 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
            connectionURL="jdbc:mysql://localhost/LEARNING" userId="root"
            password="********">
            <property name="remarks" value="true" />
        </jdbcConnection>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>
        <!-- 数据表对应的model 层  -->
        <javaModelGenerator targetPackage="com.zdran.springboot.dao"
            targetProject="D:\bxwzh">
            <property name="enableSubPackages" value="true" />
        </javaModelGenerator>
        <!-- sql mapper 隐射配置文件 -->
        <sqlMapGenerator targetPackage="com.zdran.springboot.mapping"
            targetProject="D:\bxwzh">
            <property name="enableSubPackages" value="true" />
        </sqlMapGenerator>
        <!-- 在ibatis2 中是dao层,但在mybatis3中,其实就是mapper接口 -->
        <javaClientGenerator type="XMLMAPPER"
            targetPackage="com.zdran.springboot.mapper" targetProject="D:\bxwzh">
            <property name="enableSubPackages" value="true" />
        </javaClientGenerator>

    <!-- 要对哪些数据表进行生成操作,必须要有一个. -->
    <table tableName="ACCOUNT_INFO" domainObjectName="AccountInfo"></table>
    </context>
</generatorConfiguration>

注意:数据库的密码需要换成你自己的。targetProject=”D:\bxwzh,这个目录尽量是空文件夹

在 generator 的lib目录下执行下面的命令:

java -jar mybatis-generator-core-1.3.6.jar -configfile configuration.xml  -overwrite

出现:MyBatis Generator finished successfully. 就说明成功了。

我们直接将com目录拷贝到项目目录下面去

在resources 新建 mybaits 目录,然后将 mapping 文件夹移动到 mybaits 下

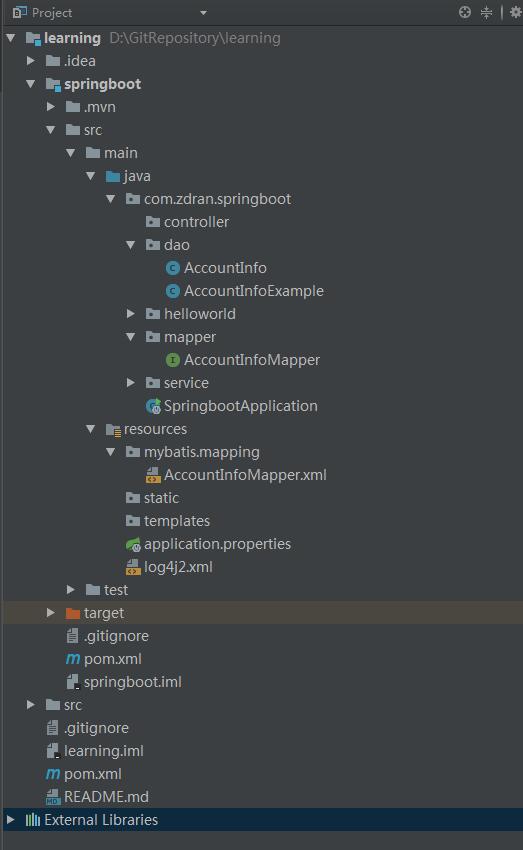

现在我们的项目结构是下面这样的:


项目结构

添加 mybaits依赖:

<!--springBoot和mybatis继承-->
<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>1.3.2</version>
    <!-- 移除 logging -->
    <exclusions>
        <exclusion>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-logging</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<!-- mysql 驱动-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.2</version>
</dependency>

4. 添加MyBatis的配置

在配置文件里添加下面的配置:

mybatis:
  mapperLocations: classpath:mybatis/mapping/*.xml
  typeAliasesPackage: com.zdran.springboot.dao

spring:
    datasource:
        name: test
        url: jdbc:mysql://localhost:3306/LEARNING
        username: root
        password: ********
        driver-class-name: com.mysql.jdbc.Driver

5. 测试一下

在 SpringbootApplication 类上面添加包的扫描路径


/**
 * 启动程序
 * Create by zdRan on 2018/6/28
 *
 * @author cm.zdran@gmail.com
 */
@SpringBootApplication
@MapperScan(basePackages = "com.zdran.springboot.mapper")
public class SpringbootApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootApplication.class, args);
    }
}

下面我们实现一个根据姓名查询账号信息的接口。创建对应的controller、service等

Service 层的实现:

/**
 * Create by ranzd on 2018/7/2
 *
 * @author cm.zdran@gmail.com
 */
@Service
public class AccountServiceImpl implements AccountService {
    @Autowired
    AccountInfoMapper accountInfoMapper;

    @Override
    public AccountInfo queryByName(String name) {
        AccountInfoExample example = new AccountInfoExample();
        example.createCriteria().andNameEqualTo(name);
        List<AccountInfo> accountInfoList = accountInfoMapper.selectByExample(example);
        if (accountInfoList != null && accountInfoList.size() != 0) {
            return accountInfoList.get(0);
        }
        return null;
    }
}

Controller层的实现:

/**
 * Create by ranzd on 2018/7/3
 *
 * @author cm.zdran@gmail.com
 */
@RestController
@RequestMapping("/account")
public class AccountController {
    private Logger logger = LoggerFactory.getLogger(AccountController.class);

    @Autowired
    AccountService accountService;

    @GetMapping("/get/{name}")
    public AccountInfo getAccountByName(@PathVariable String name) {
        logger.info("根据姓名获取账号信息。入参:name:{}", name);
        AccountInfo accountInfo = accountService.queryByName(name);
        if (accountInfo == null) {
            logger.info("根据姓名获取账号信息。获取失败");
        }
        logger.info("根据姓名获取账号信息。出参:accountInfo:{}", accountInfo.toString());
        return accountInfo;
    }
}

运行一下,访问 http://localhost:9090/learning/account/get/root

url最后的 root 用户名

5. 集成 druid

上面的配置方法是最简单的配置方法。还有一种常常用于生产环境的配置方法。

添加 druid 依赖

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.1.1</version>
</dependency>

添加druid配置


spring:
    datasource:
        url: jdbc:mysql://localhost:3306/LEARNING
        username: root
        password: ********
        driver-class-name: com.mysql.jdbc.Driver
        initialSize: 5
        minIdle: 5
        maxActive: 10
        maxWait: 10000
        timeBetweenEvictionRunsMillis: 60000
        minEvictableIdleTimeMillis: 300000
        testOnBorrow: false
        testOnReturn: false
        testWhileIdle: true
        keepAlive: true
        removeAbandoned: true
        removeAbandonedTimeout: 80
        logAbandoned: true
        poolPreparedStatements: true
        maxPoolPreparedStatementPerConnectionSize: 20
        filters: stat,slf4j,wall

添加依赖,方便使用 ConfigurationProperties 注解,来读取yml里的配置信息

<!-- 为了方便使用@ConfigurationProperties注解 -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-configuration-processor</artifactId>
    <optional>true</optional>
</dependency>

创建 druid 配置文件读取类

/**
 * Create by ranzd on 2018/7/3
 *
 * @author cm.zdran@gmail.com
 */
@Configuration
@ConfigurationProperties(prefix = "spring.datasource")
public class DruidDataSourceProperties {

    private String driverClassName;
    private String url;
    private String username;
    private String password;

    private int initialSize;
    private int minIdle;
    private int maxActive;
    private long maxWait;
    private long timeBetweenEvictionRunsMillis;
    private long minEvictableIdleTimeMillis;
    private boolean testOnBorrow;
    private boolean testOnReturn;
    private boolean testWhileIdle;
    private boolean keepAlive;
    private boolean removeAbandoned;
    private int removeAbandonedTimeout;
    private boolean logAbandoned;
    private boolean poolPreparedStatements;
    private int maxPoolPreparedStatementPerConnectionSize;
    private String filters;

    //省略了所有属性的 get 、set方法
}

上面的代码省略了所有属性的 get 、set方法,你的本地代码一定要有get、set方法

删除 yml 里的 mybaits 配置:

mybatis:
  mapperLocations: classpath:mybatis/mapping/*.xml
  typeAliasesPackage: com.zdran.springboot.dao

删除 SpringbootApplication 类上面的 MapperScan 注解

@MapperScan(basePackages = "com.zdran.springboot.mapper")

创建 mybaits 的配置类:

/**
 * Create by ranzd on 2018/7/3
 *
 * @author cm.zdran@gmail.com
 */
@Configuration
@EnableTransactionManagement
@MapperScan(
        basePackages = "com.zdran.springboot.mapper",
        sqlSessionFactoryRef = "learningSqlSessionFactory")
public class MyBatisConfig {
    private Logger logger = LoggerFactory.getLogger(MyBatisConfig.class);

    @Autowired
    DruidDataSourceProperties druidDataSourceProperties;

    @Bean(name = "learningSqlSessionFactory")
    @Primary
    public SqlSessionFactory learningSqlSessionFactory() throws Exception {
        final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
        sessionFactory.setDataSource(getDruidDataSource());
        sessionFactory.setTypeAliasesPackage("com.zdran.springboot.dao");
        sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver()
                .getResources("classpath:/mybatis/mapping/*.xml"));
        return sessionFactory.getObject();
    }

    @Bean(name = "learningDataSource")
    public DataSource getDruidDataSource() {
        DruidDataSource druidDataSource = new DruidDataSource();
        druidDataSource.setDriverClassName(druidDataSourceProperties.getDriverClassName());
        druidDataSource.setUrl(druidDataSourceProperties.getUrl());
        druidDataSource.setUsername(druidDataSourceProperties.getUsername());
        druidDataSource.setPassword(druidDataSourceProperties.getPassword());
        druidDataSource.setInitialSize(druidDataSourceProperties.getInitialSize());
        druidDataSource.setMinIdle(druidDataSourceProperties.getMinIdle());
        druidDataSource.setMaxActive(druidDataSourceProperties.getMaxActive());
        druidDataSource.setMaxWait(druidDataSourceProperties.getMaxWait());
        druidDataSource.setTimeBetweenEvictionRunsMillis(
            druidDataSourceProperties.getTimeBetweenEvictionRunsMillis());
        druidDataSource.setMinEvictableIdleTimeMillis(
            druidDataSourceProperties.getMinEvictableIdleTimeMillis());
        druidDataSource.setTestOnBorrow(druidDataSourceProperties.isTestOnBorrow());
        druidDataSource.setTestOnReturn(druidDataSourceProperties.isTestOnReturn());
        druidDataSource.setTestWhileIdle(druidDataSourceProperties.isTestWhileIdle());
        druidDataSource.setKeepAlive(druidDataSourceProperties.isKeepAlive());
        druidDataSource.setRemoveAbandoned(druidDataSourceProperties.isRemoveAbandoned());
        druidDataSource.setRemoveAbandonedTimeout(
            druidDataSourceProperties.getRemoveAbandonedTimeout());
        druidDataSource.setLogAbandoned(druidDataSourceProperties.isLogAbandoned());

        druidDataSource.setPoolPreparedStatements(
            druidDataSourceProperties.isPoolPreparedStatements());
        druidDataSource.setMaxPoolPreparedStatementPerConnectionSize(
            druidDataSourceProperties.getMaxPoolPreparedStatementPerConnectionSize());
        try {
            druidDataSource.setFilters(druidDataSourceProperties.getFilters());
            druidDataSource.init();
        } catch (SQLException e) {
            logger.error("数据源初始化失败", e);
        }
        return druidDataSource;
    }
}

OK!重新启动测试一下刚才的接口。
